Dosing systems
for LSR injection molding
LSR 18mc
Micro shots and other special applications.
Feed from:
Cartridge
20 l
200 l
LSR 100pv/600pv
Energy-efficient servo-pneumatic dosing system
with variable mixing ratio for standard applications.
Feed from:
20 l
200 l
Special design »Space wonder«
Same system as LSR 100pv,
but space-saving thanks to its compact design.
SPECIAL FEATURES
EMT feed unit
The EMT system has the following features:
- Key components made of stainless steel
- Stainless steel scoop piston cylinder
- Transparent follower plates
Air inclusions are apparent immediately and unnecessary flushing is avoided - Flat follower plates
for subsequent residual quantity optimisation - Convenient cleaning of the follower plate
due to large length of stroke
EMT-dosing system LSR 18mc
With the dosing systems currently available on the market, serious inaccuracies are often merely compensated for.
With the LSR 18mc, this is avoided because deviations do not occur in the first place.
This results in the following advantages:
- accurate
- Shifting the A and B components is not possible in the first place
- Minimal space required when using cartridges
- excellent value for money

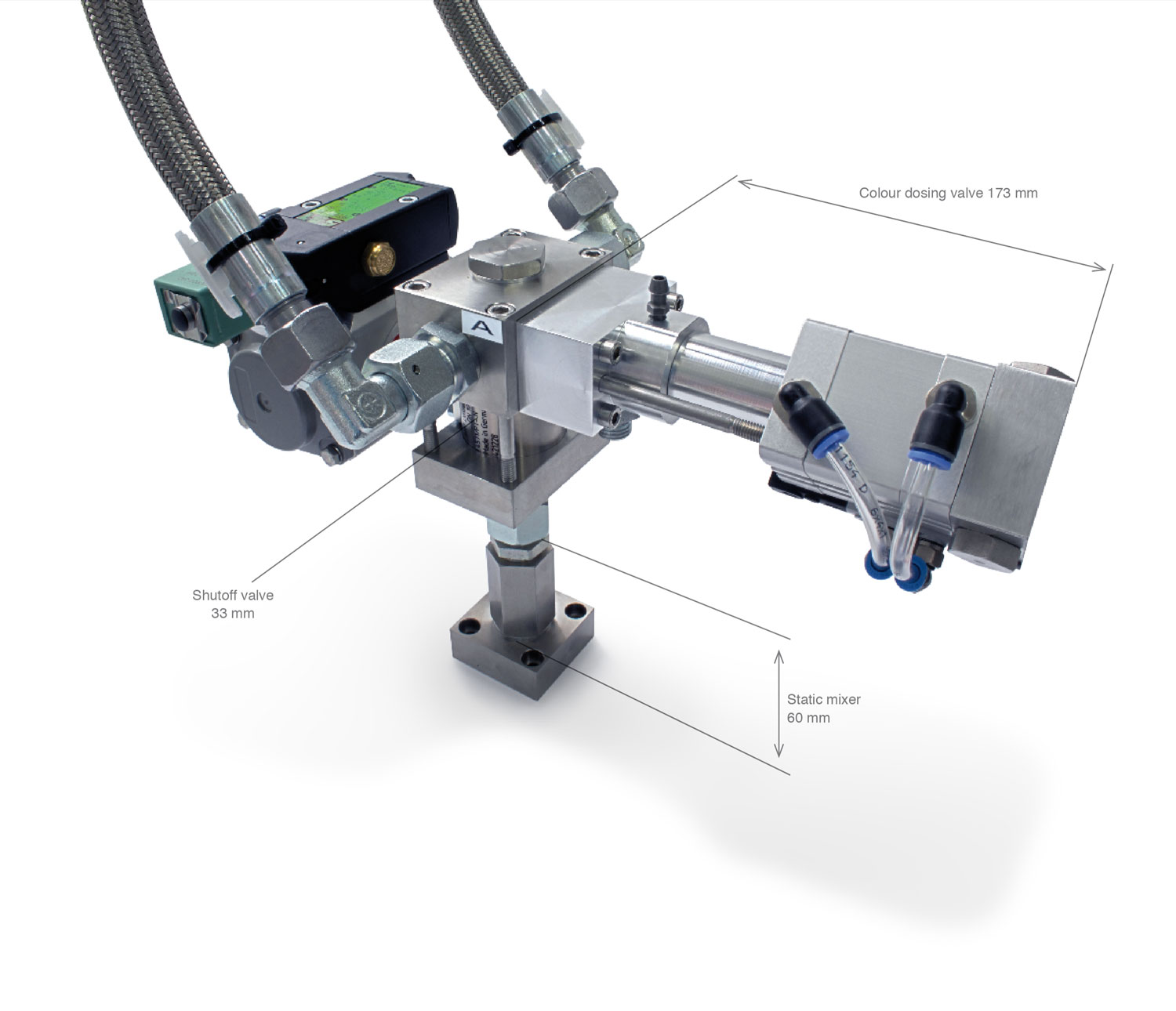

Our MIXING UNIT
The mixing unit of the EMT-LSR dosing system was
radically shortened. It sets itself apart with an extremely short mixing section.
The advantages of EMT mixing units at a glance:
- Very short mixing sections
- No pressure regulator
- Lowest material loss on material changeover
- One-way plastic mixing elements optional
- Highly simplified cleaning
(significant time reduction) - Minimum space requirements
Example with mini static mixer
COLOUR FEED PUMP
The advantages of the EMT colour feed pump at a glance:
- stainless steel container 6 Liter
- Leak-free
- Permanent environmental protection
- Automatic venting
- Distributor for connecting two color lines
